HAVFISK
M-100-A
| Built: | Karstensens Shipyard |
MAIN DIMENSIONS
| Length Overall: | 75.10m |
| Beam: | 16.20m |
| Depth to Main Deck: | 11.25m |
| Gross Tonnage: | 3,389 tonnes |
| Service Speed (mechanical): | 16.4 knots |
| Service Speed (electrical): | 11.7 knots |
| Class: | DNV +1A E0 Ice-C Tmon BIS, Fishing Vessel |

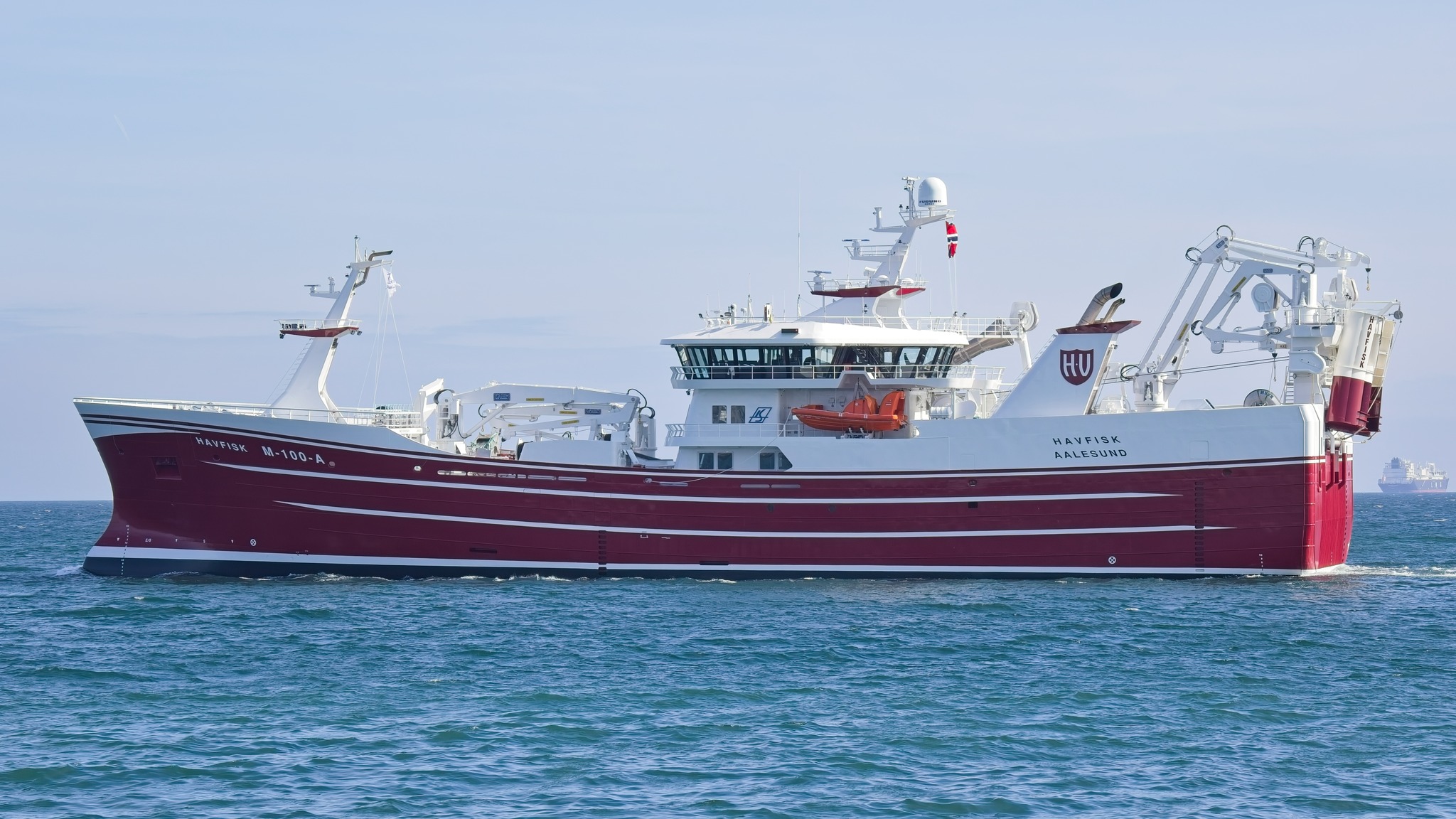

New Era Begins for Veibust with Arrival of 75m “Havfisk”
The state-of-the-art trawler Havfisk has officially been delivered by Karstensens Skibsværft to Havfisk AS, part of the Veibust Fiskeriselskap Group.
The vessel wa expected to arrive at Veibust Quay in Ålesund on Monday, 12 May 2025 at 08:30.

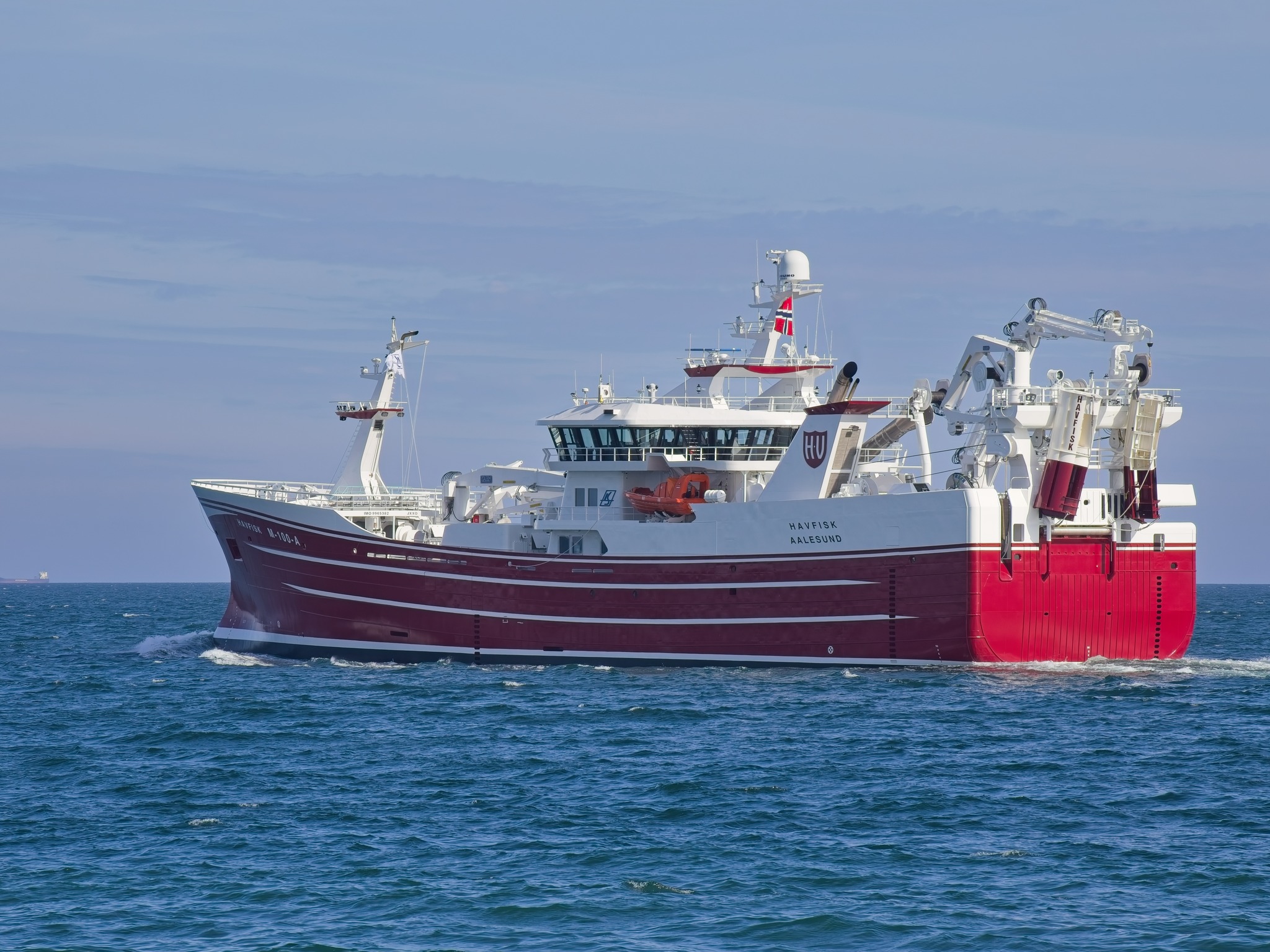

The 75-metre-long combination seiner/trawler represents the latest advancement in pelagic fishing, operating under the Norwegian flag and homeported in Ålesund. Havfisk joins sister vessels Havskjer and Havstål, completing a three-vessel fleet managed by Henning Veibust.
This is Veibust’s fourth newbuilding project, and the second direct collaboration with Karstensens on a fresh build, following the successful delivery of Havskjer in 2021. The hull for Havfisk was constructed at Karstensen Shipyard Poland in Gdańsk.
Hybrid-Ready Propulsion and Environmental Design

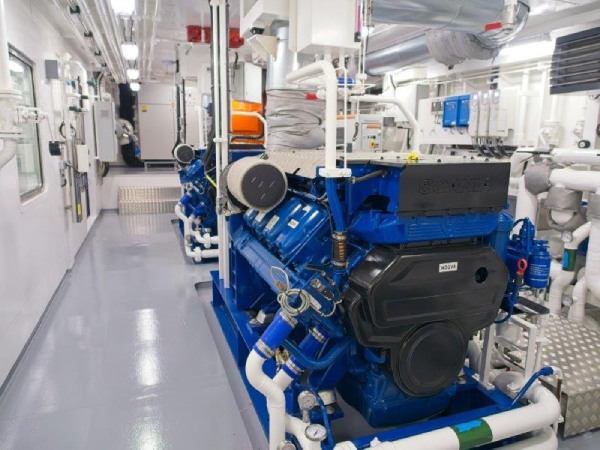

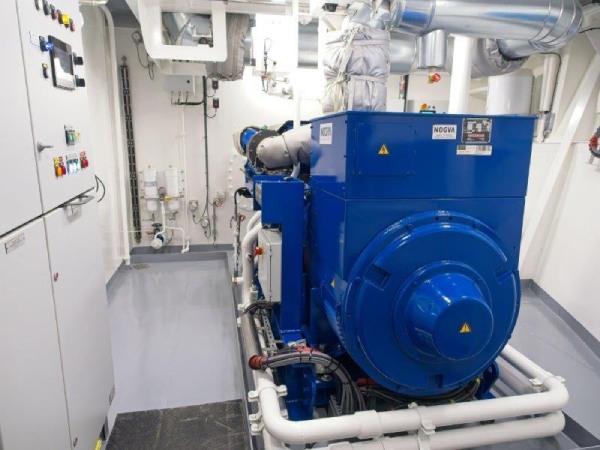

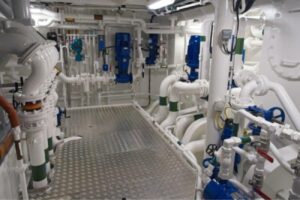

Havfisk is powered by a 5200 kW Wärtsilä 8V31 main engine, operating in tandem with a 3400 kW shaft generator. The design allows for diesel-mechanical and diesel-electric propulsion, supported by three auxiliary engines from Nogva Scania. A “take-me-home” PTH function ensures redundancy and operational flexibility.
The electric system is equipped with a Power Management System (PMS) and features floating frequency control for optimised fuel efficiency. This enables variable propeller RPMs from 108 to 130.

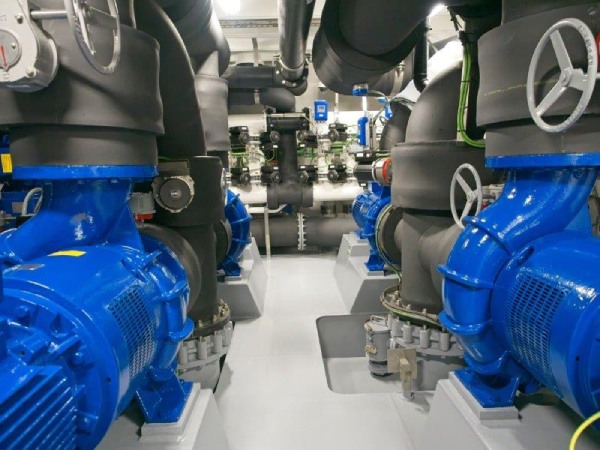

The vessel carries 2,530 m³ of refrigerated seawater (RSW) tank capacity, supplied by PTG FrioNordica, and supported by vacuum systems from C-Flow.
Comfort, Crew Welfare and Low Noise Levels

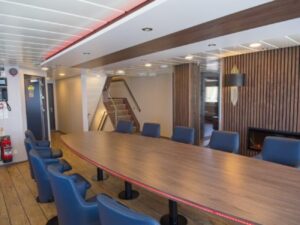

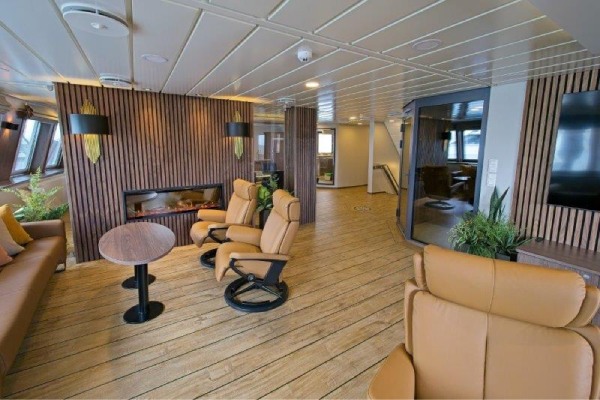

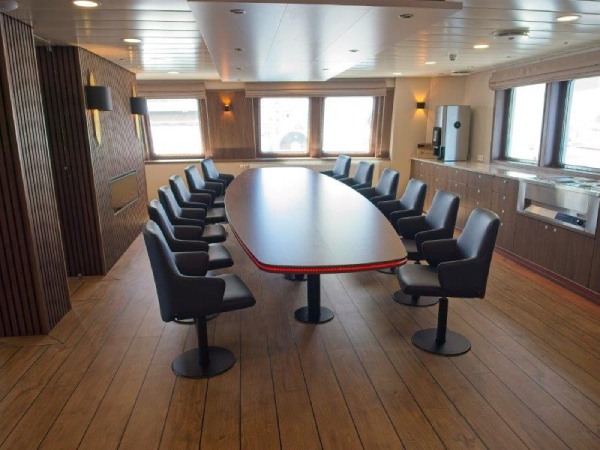

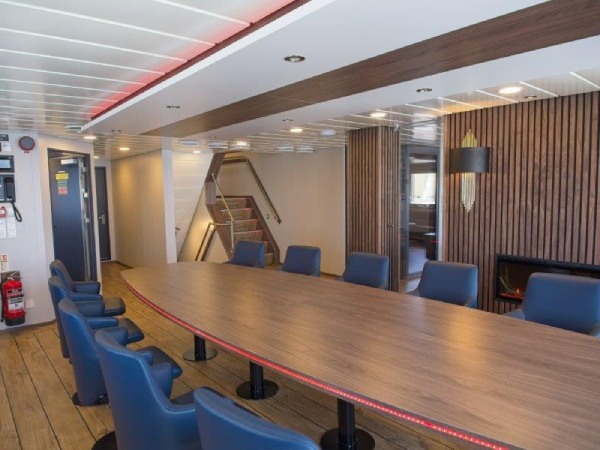

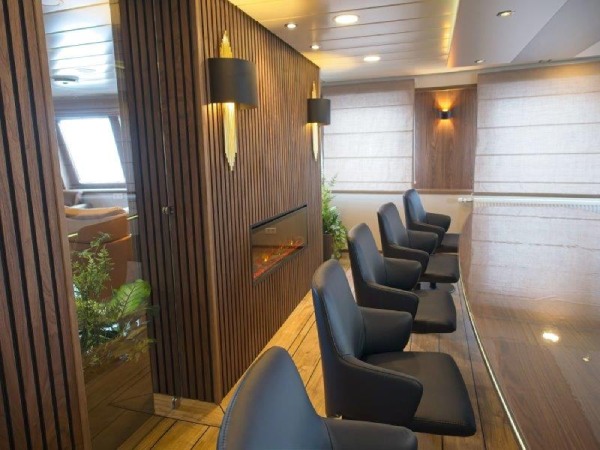

With noise levels in most crew cabins kept below 50 dB(A), Havfisk offers a modern and comfortable environment. The accommodation spans across multiple decks, including private quarters, a mess hall, recreation room, hospital, and laundry facilities. The vessel has 13 crew cabins, including 4 for officers.
Interior design and furniture were supplied by Maritime Montering and Ekornes, with noise insulation engineered through placement and construction materials.
Deck and Processing Equipment

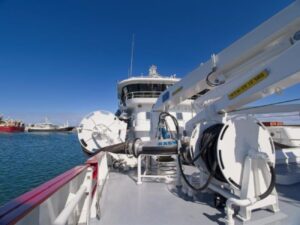

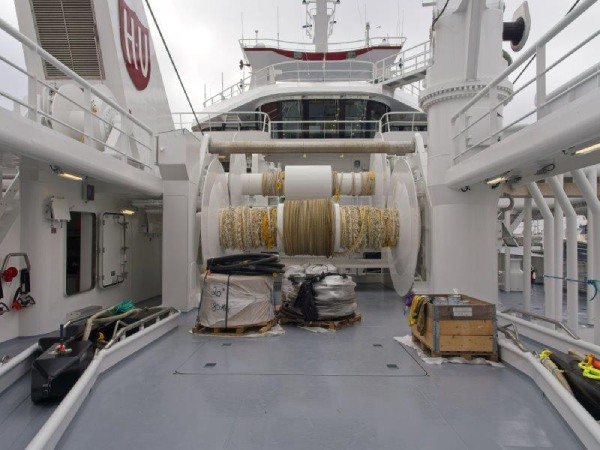

Deck machinery and fish handling systems are supplied by Karmøy Winch and Storm Cranes, including:
-
2 x 90t trawl winches
-
2 x 148t net drums
-
2 x 20” fish pumps
-

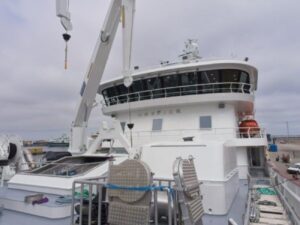

3 x deck cranes and multiple hose reel systems

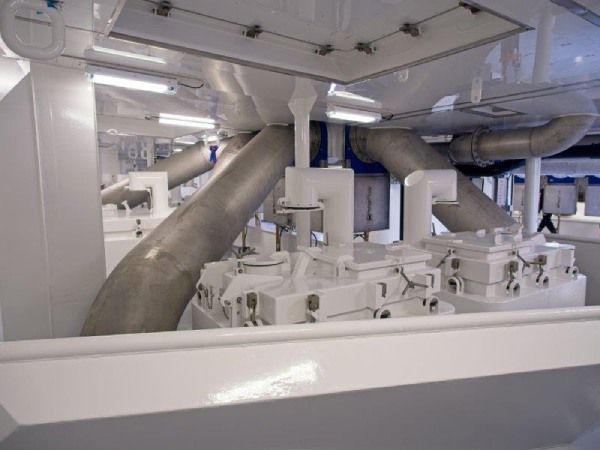

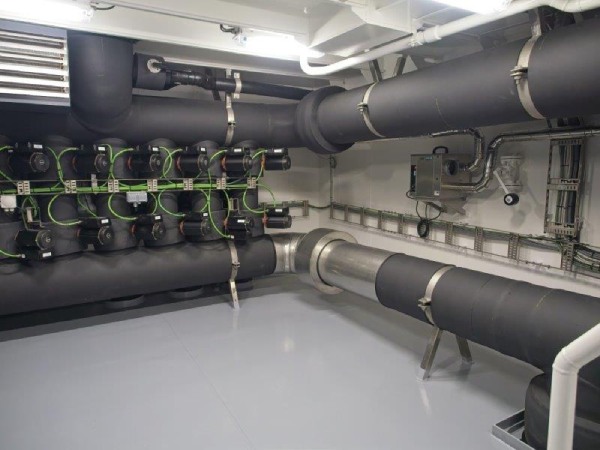

The fish processing setup includes RSW circulation with electronically actuated valves and extensive vacuum systems to maintain product quality.

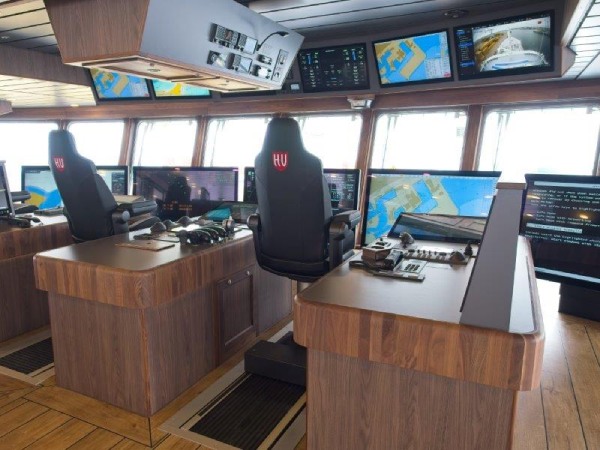

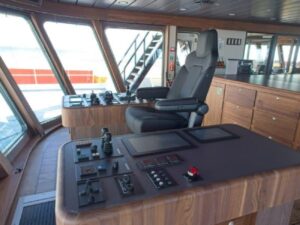

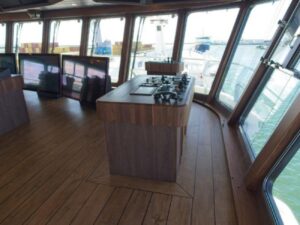

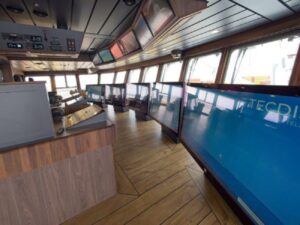

Navigation and Electronic Systems
Electronics were installed by KS Elektro and supplied by Furuno Norge, Simrad, Marport and others. Highlights include:
-
Furuno BlueBridge control matrix
-
Triple sonar suite (FSV-25, 75, 85)
-
Multiple radars and GPS-gyro units
-
Satellite communications via Sailor-900 Ka and Starlink
-
Full bridge monitor suite with 65” widescreens
Autopilot and autotrawl systems are from Simrad and Karm respectively, enhancing automation and operational efficiency.
Photos and Text supplied by Karstensens Shipyard
